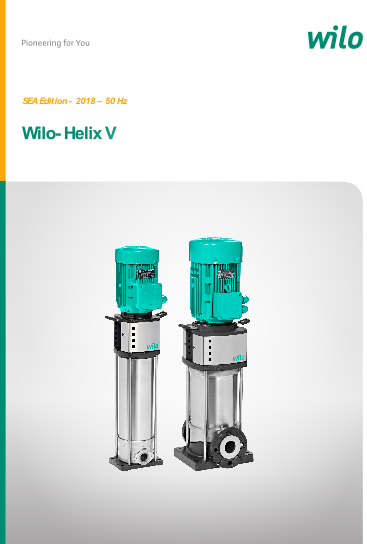

Wilo-Helix V Series
Design Non-self-priming, high efficiency multistage high pressure centrifugal pump in vertical design with in-line connections
Type key Example: HELIX V 2202/2-1/16/E/X/KS/..400-50 HELIX V Vertical high-pressure multistage centrifugal pump in in-line design 22 Flow rate in m³/h 02 Number of impellers 2 Number of trimmed impellers (optionally) 1 Pump Materials 1 = Pump housing 1.4301 (AISI 304) Hydraulics 1.4307 (AISI 304L) 2 = Pump housing 1.4409 (AISI 316L) Hydraulics 1.4404 (AISI 316L) 3 = pump housing EN-GJL-250 (cataphoretic coating) Hydraulics 1.4307 (AISI 304L): (Only Helix VE 22..and larger) 4 = Monobloc pump housing EN-GJL-250 (cataphoric-coated Hydraulics 1.4307 (AISI 304L): (Only Helix VE 22..and larger) 16 Maximum operating pressure in bar 16 = 16 bar (PN16 flange) 25 = 25 bar (PN25 flange) 30 = 30 bar (PN40 flange) E Gasket type: E = EPDM, V = FKM (Viton) X “X-Care” special version K Cartridge type mechnical seal S The coupling guard is on a line with suction and discharge ports of the pump. … Optional 400 Connection voltage in V 50 Frequency in Hz
Equipment/function
→ Corrosion-resistant impellers, diffusors and stage housings
